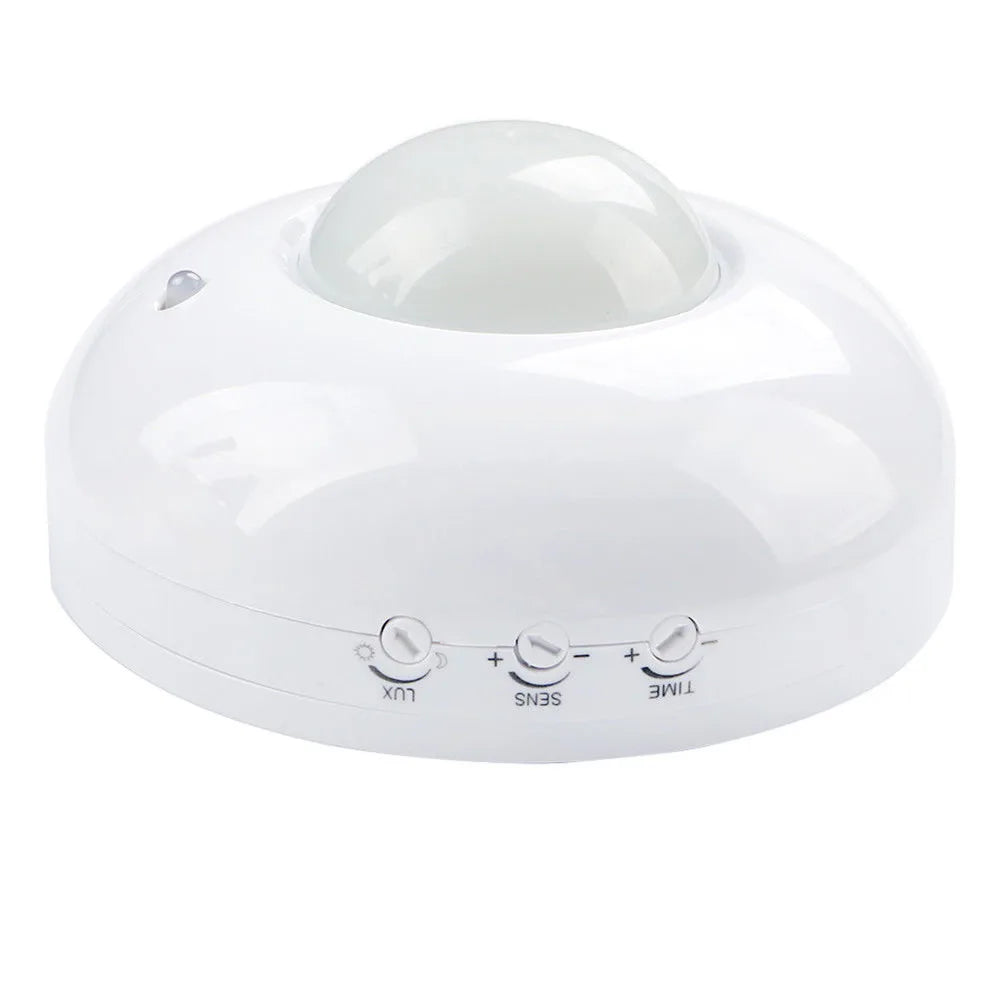

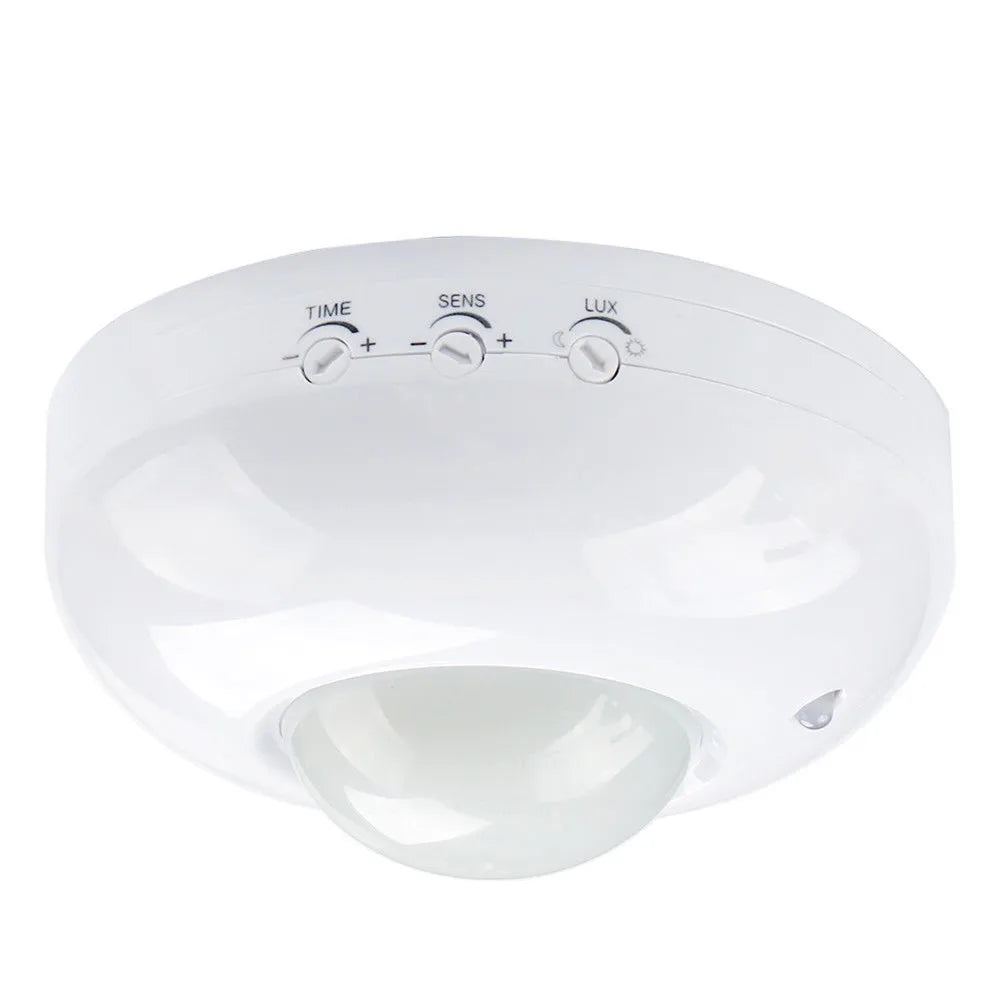

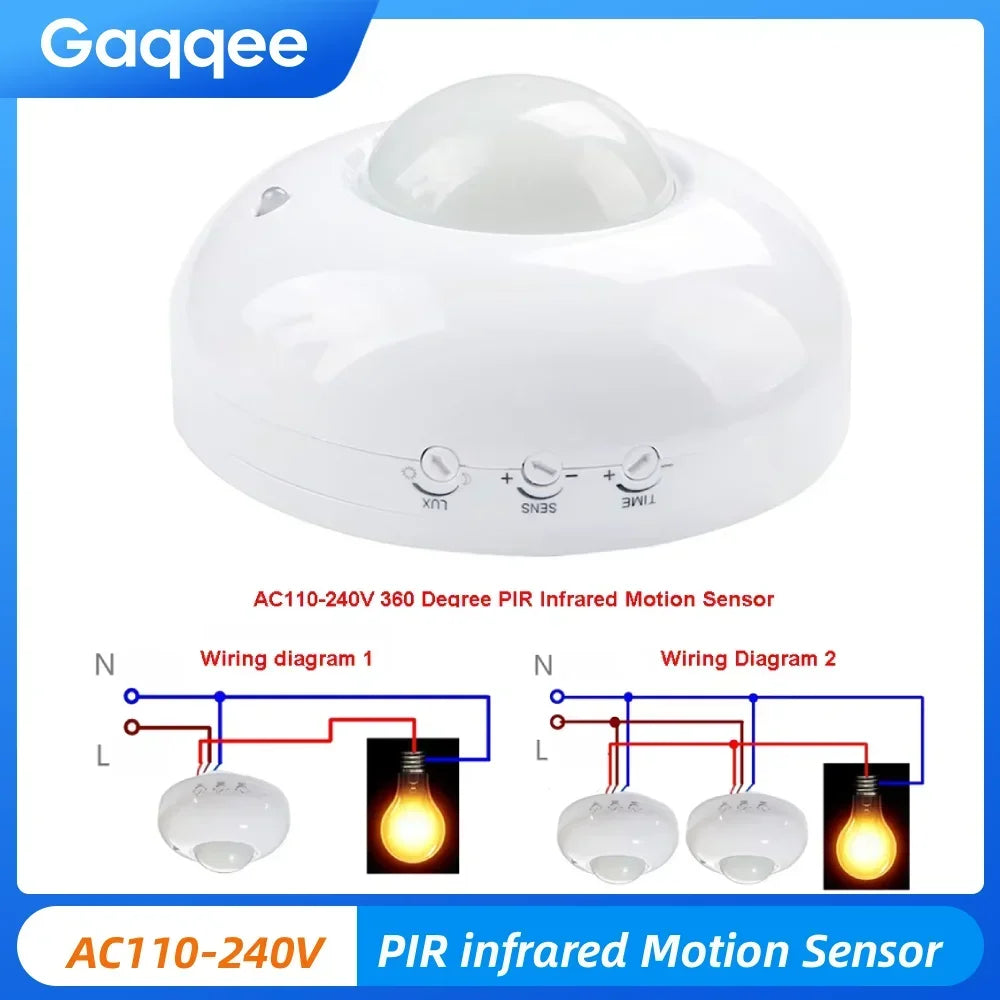

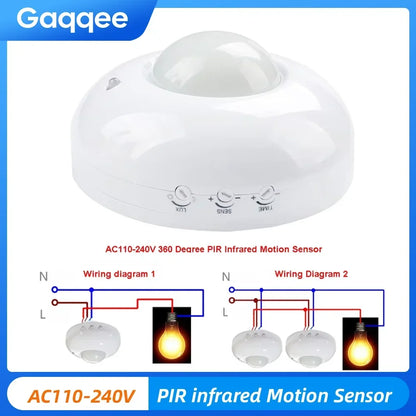

AC110-240V Automatic Sensor Light Switch LED PIR Infrared Motion Sensor Detection Mini LED Sensitive Night Light Indoor Outdoor

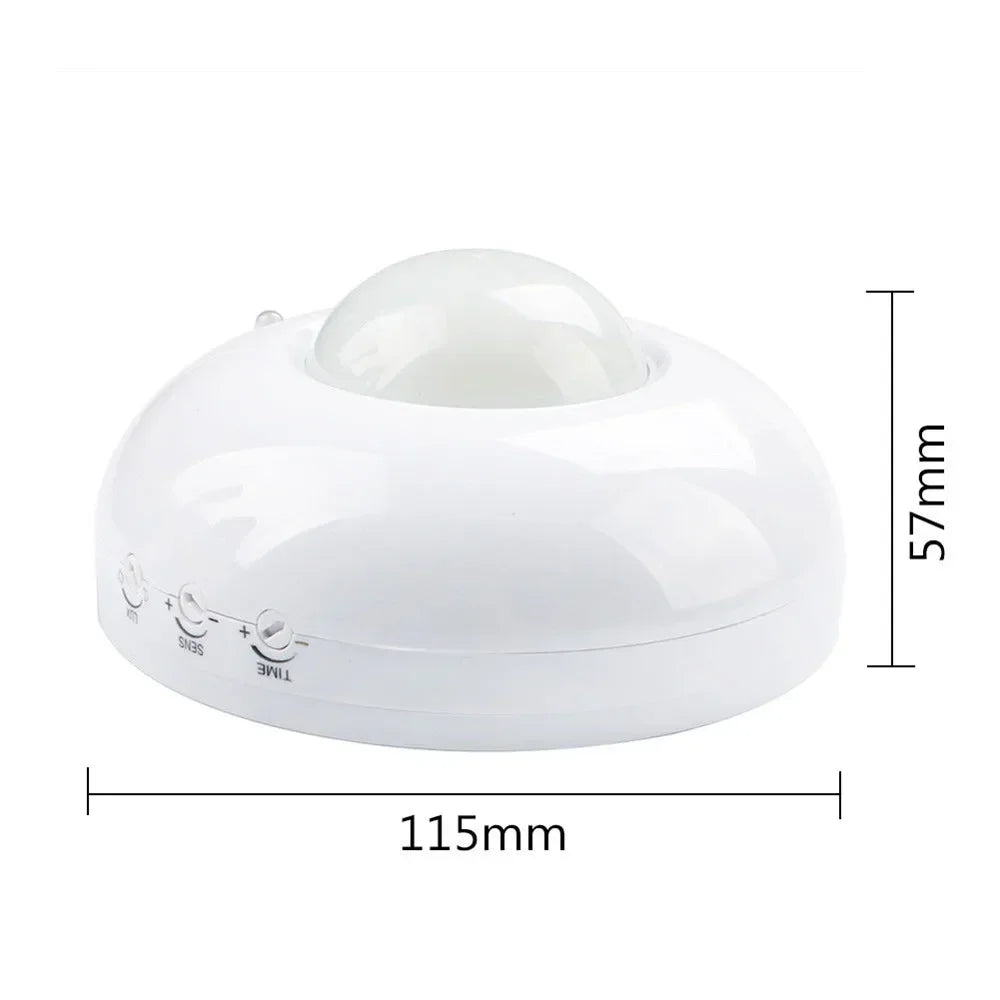

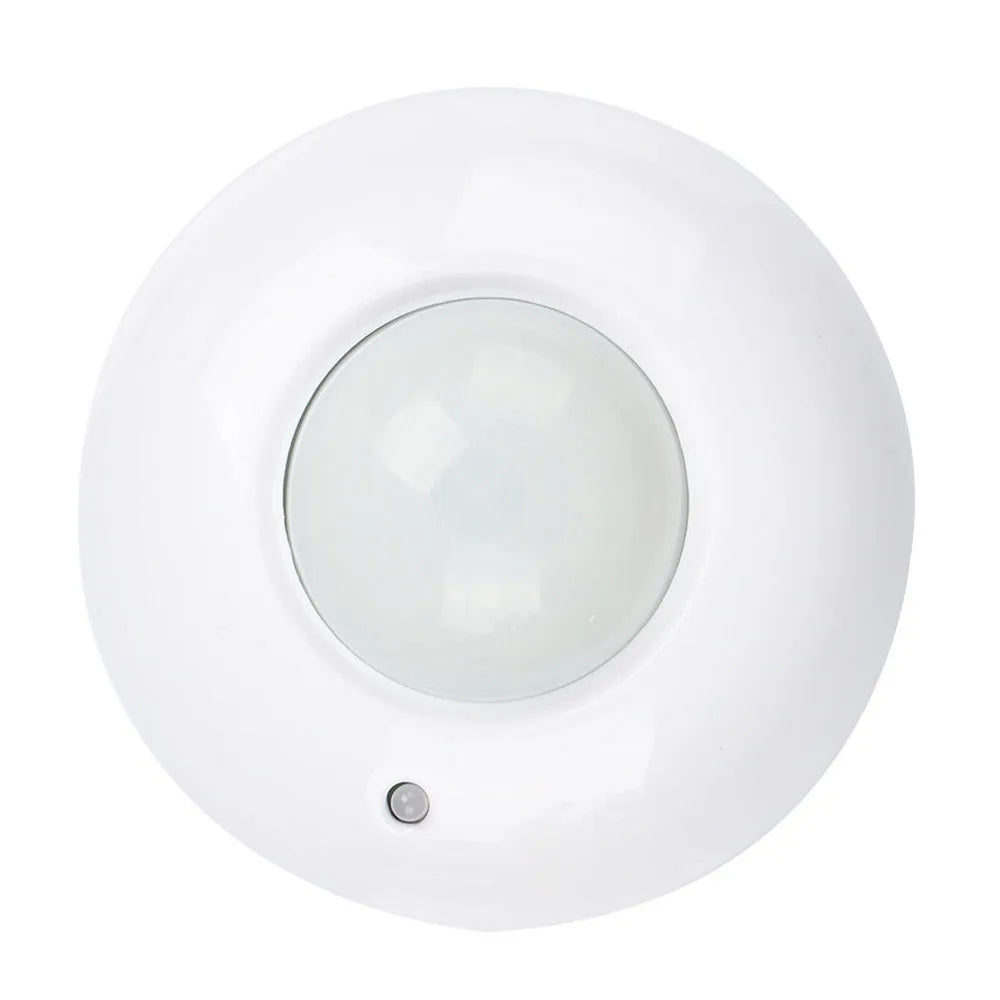

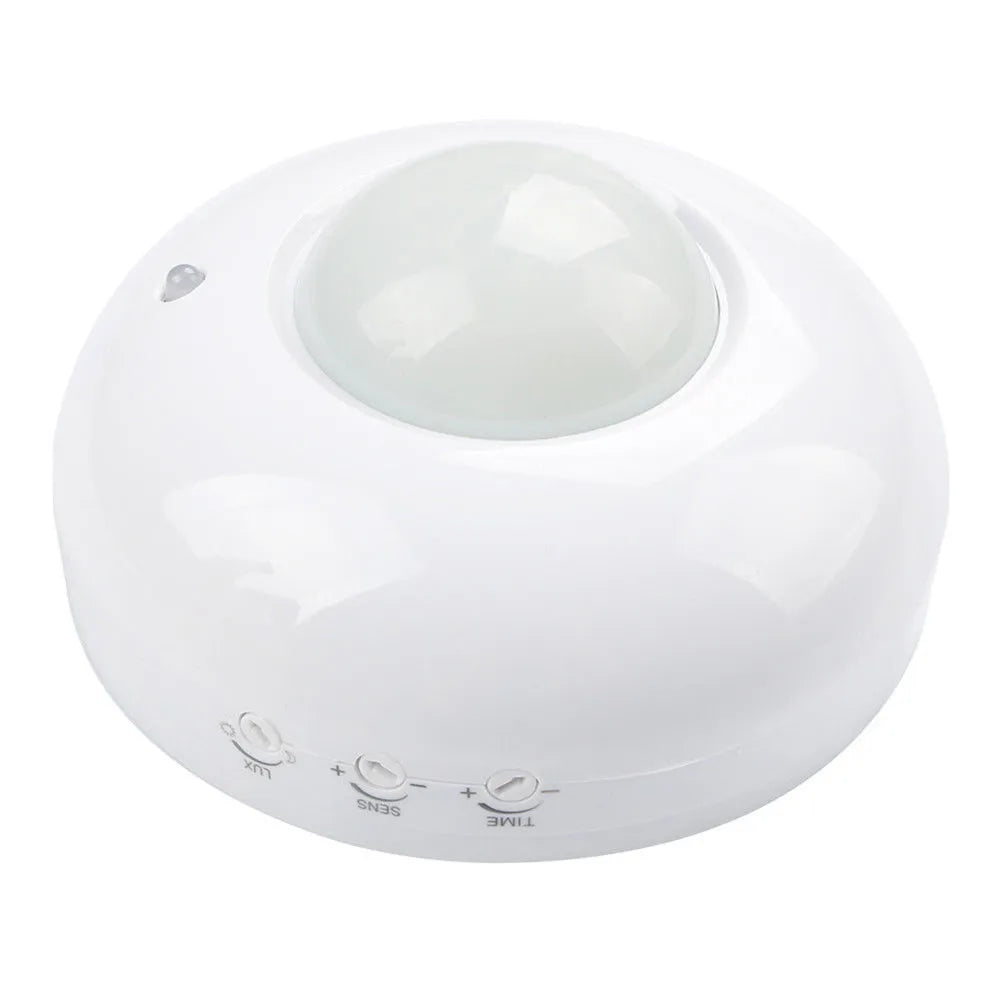

Type 1 AC110-240V described as follows:

Product parameters:

Product function: When a person enters the induction range, the power is turned on immediately, and the power is turned off according to the set time after the person leaves. To achieve the purpose of intelligent energy-saving control. All electrical appliances such as LED lights, energy-saving lamps, fluorescent lamps, incandescent lamps, alarms, exhaust fans, etc. are suitable

1. Working voltage: AC110-240V range universal voltage and DC DC9-24V universal voltage are optional (don't worry about voltage instability)

2. Rated load current: 10A (AC voltage rated allows control of incandescent lamps 1200W, LED, energy-saving lamps and other electrical appliances 300W, DC voltage 120W)

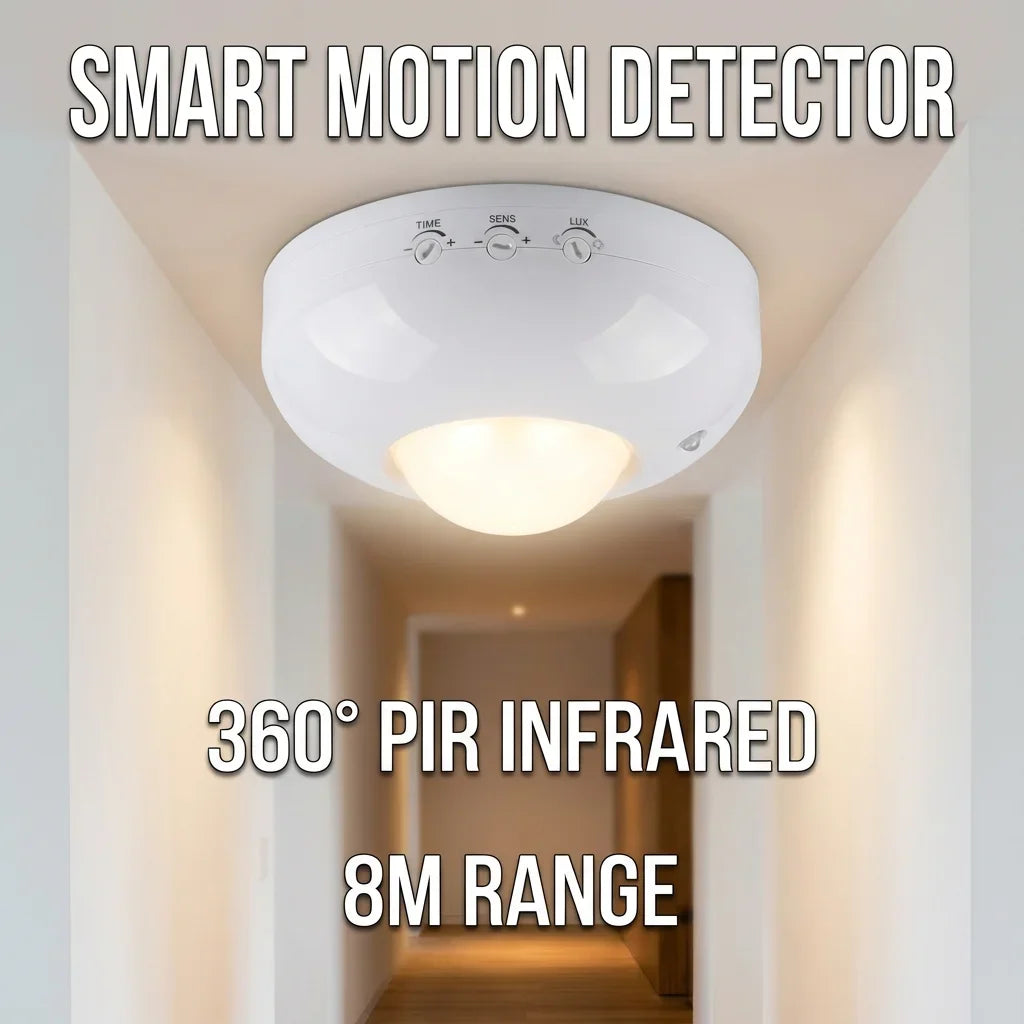

3. Induction distance: adjustable within 8 meters in diameter;

4. Sensing angle: 360-degree depression angle 140-degree cutting angle;

5. Delay adjustment range: 5 seconds to 10 minutes (Note: the delay refers to how long the power is turned off after the person leaves, not how long it takes to sense after the person arrives, it is all sensed immediately)

6. Power consumption: <0.05W

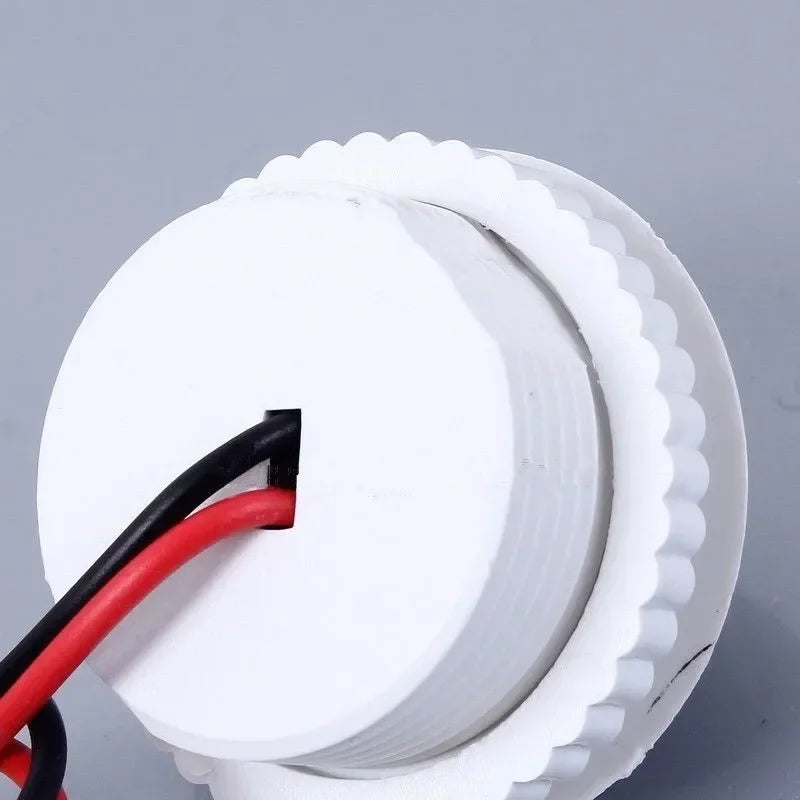

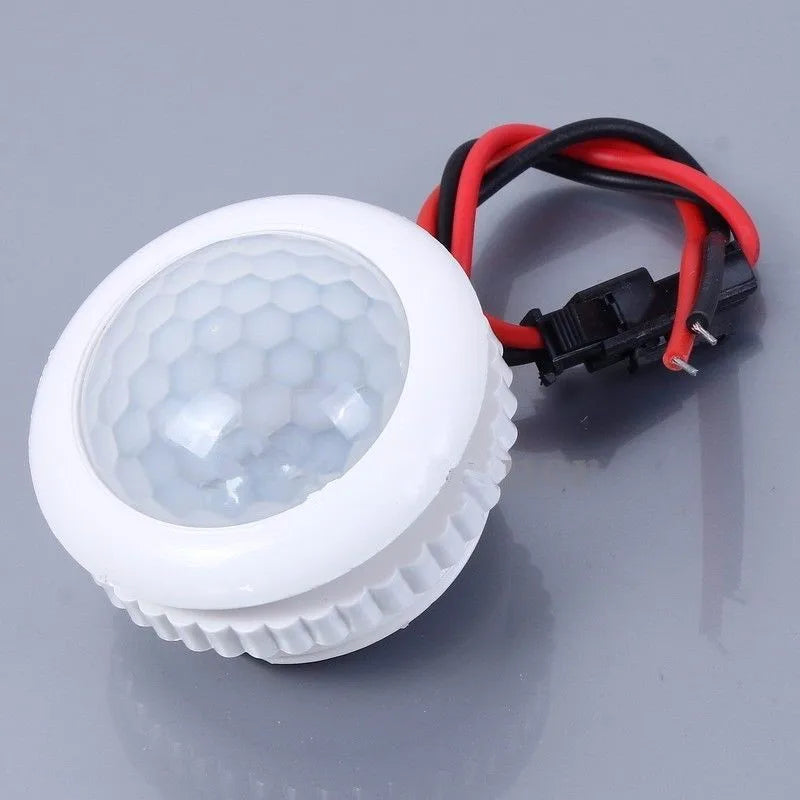

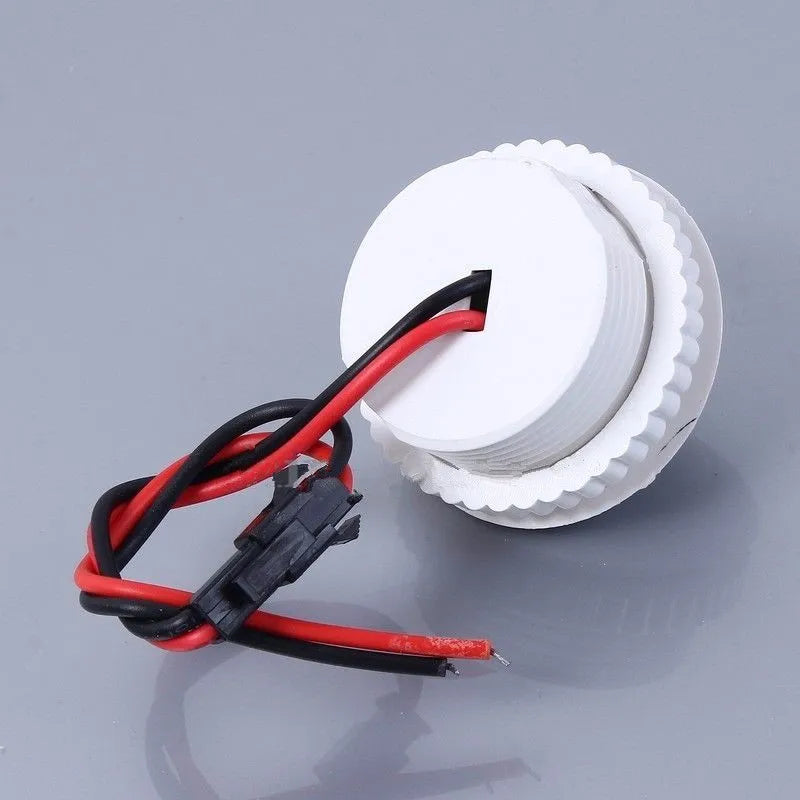

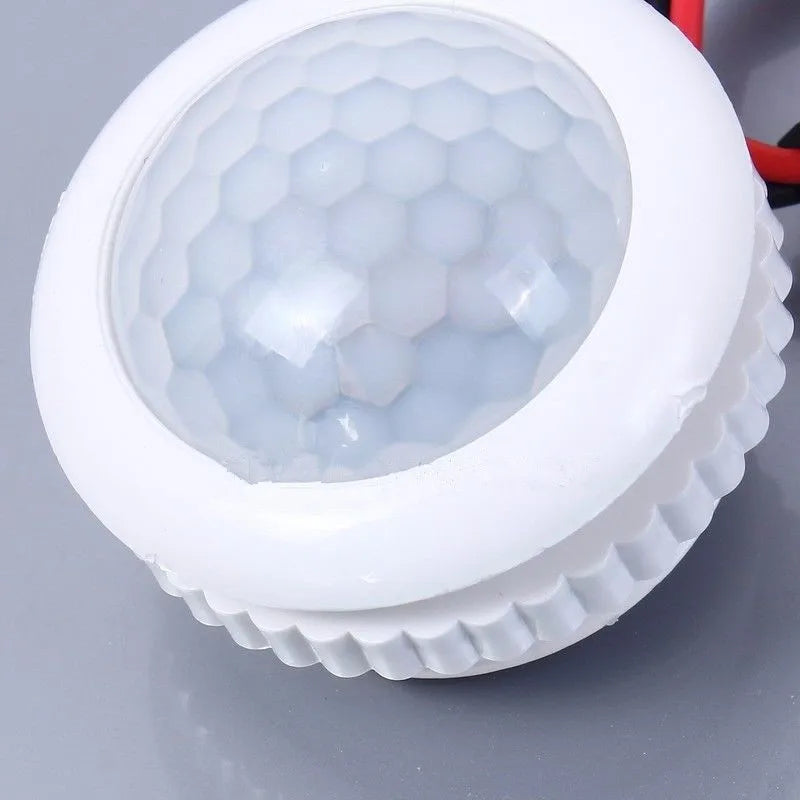

220V Type 2 described as follows:

Product parameters:

1.Sensing mode: PIR induction + light control

2.Rated voltage: 220V 50HZ

3. Output mode: thyristor

4.Load power:

Incandescent lamp 100W

Power saving 30W bulb

LED 18W

5.Delay: 20s (people move within the sensing range, the switch will automatically delay and keep connected; if people still stay, the switch will stop responding)

6.Sensing distance: 3-6M (high temperature will affect the switch sensitivity)

7.Sensing angle: 110°

Feature:

1.Adaptive filament, energy saving light bulb

2. This lamp is equipped with a body sensor.If ever come.the lin will be powered, if the person leaves, the bulb will be powered off

3.Inner body automatic sensor adopts infrared heat release device, it can accurately capture moving low frequency signal and automatically turn on

4. When the person leaves, the indicator light will automatically dalay power off, which is convenient and energy-saving

5.Inner side of the lap has been set up with an automatic ambient brightness detection circuit.Only when the ambient brightness is greater than the set value, the sensor will receive the sense and make the lamp power off.And it is energy saving

Notice:

1. When installing, please unplug to ensure safe power supply

2. Do not apply it to overwhelming current or voltage

3. Do not install to reach the waterway

4.Detection distance will change according to the difference.In summer, the detection distance will be short (obviously, when it is close to the temperature of the human body); in winter, the detection distance will be farther

5.Don't install below -20 or above 60

6. Don't expose to sunlight

Don't follow the installation, there are moving objects in it

8. First power on, there will be 1 minute to boot; during this time, the device will glow, this is normal

9.In the coastal zone, the thermal airflow will trigger the sensor, because the installation of the ocean current.If the incandescent lamp emits great heat, please keep it away from the sensor (at least 1M)
